Web Cleaner, FR-300

Web Cleaner, FR-300
Web Cleaner, FR-300 Web Cleaner, FR-300 Web Cleaner, FR-300 Web Cleaner, FR-300

Features

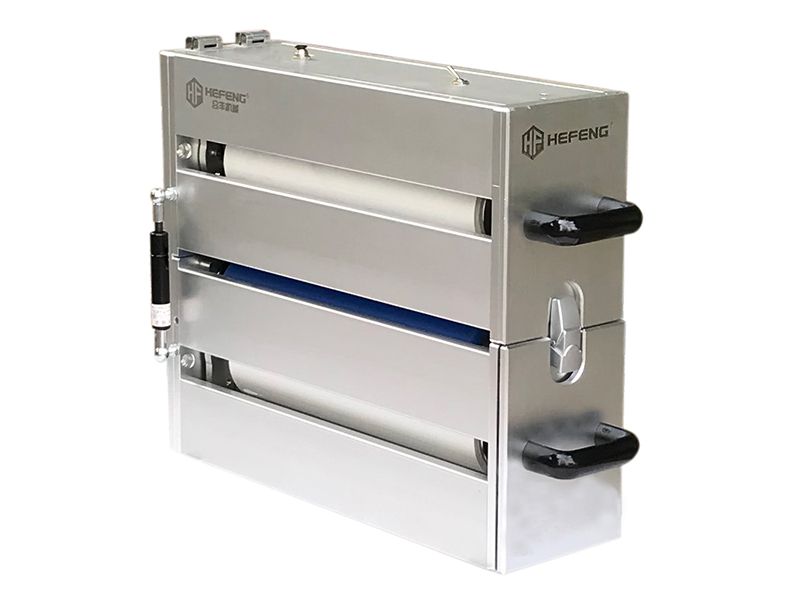

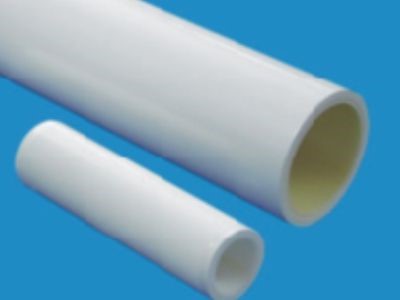

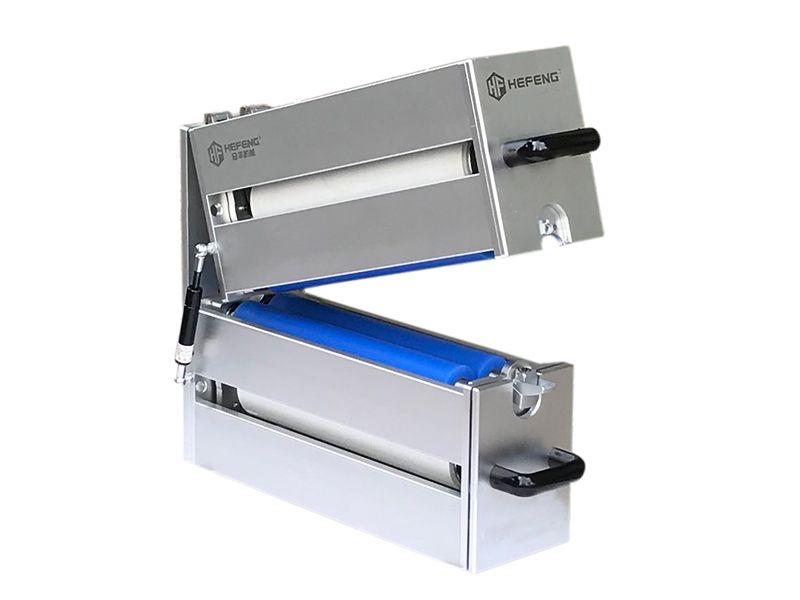

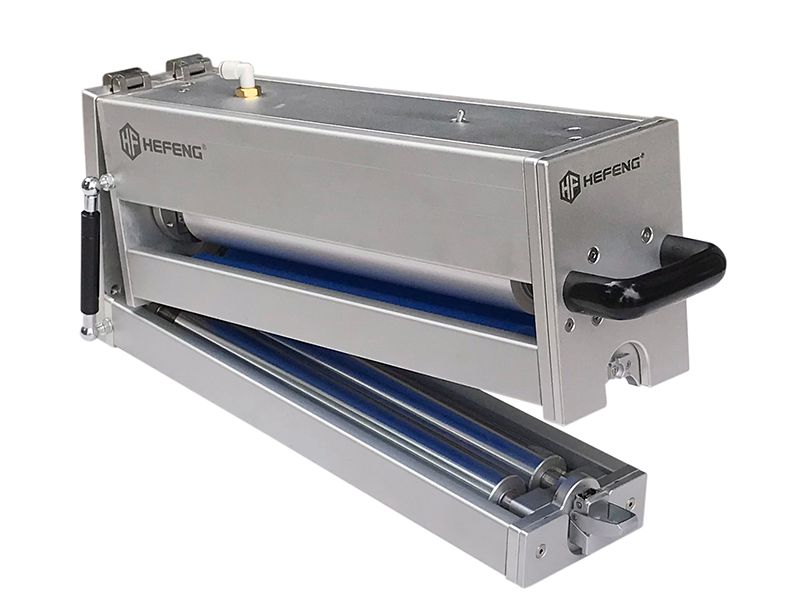

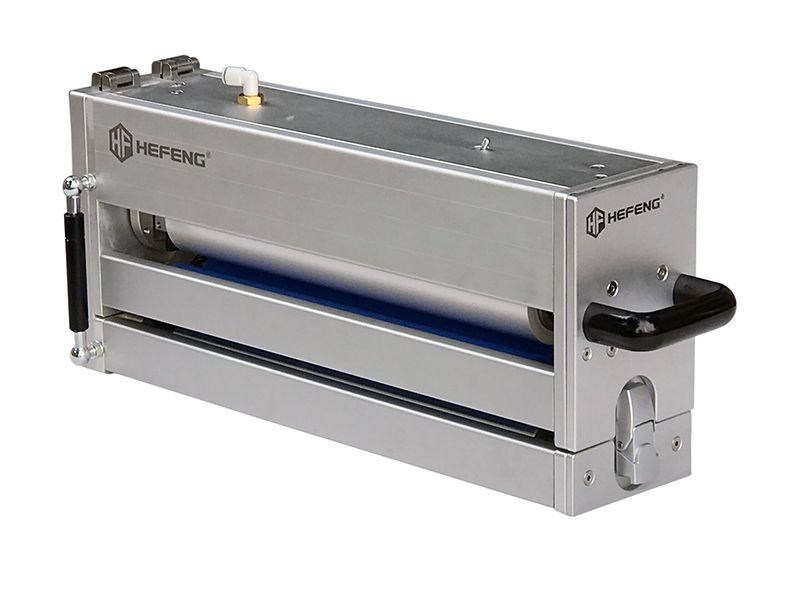

FR-300 web cleaner features contact cleaning rolls that are formed by the reaction of silicone rubber and PU key raw materials, capable of removing dust particles with size less than 2 μm. During contact web cleaning, the contact cleaning rolls come in physical contact with the product surface to collect contaminates like hair, scurf and debris, and transfer them to adhesive rolls. Various configurations of high, medium and low adhesive level are available based on actual applications needs.

Applications

  • Suitable for coating machine, printing machine, clean room, etc.
  • Web dust removal and surface cleaning for various films, adhesives, paper, foils, laminates, non-woven, medical packaging, etc.

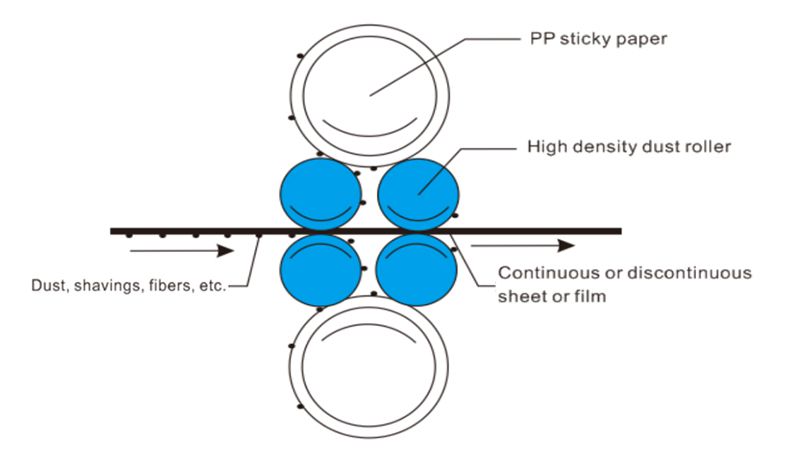

Web Cleaner Schematic

Web Cleaner Schematic
Web Cleaner Schematic

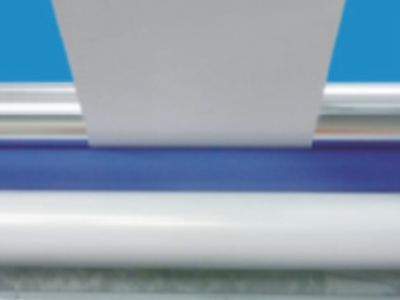

Examples

Web Cleaner Schematic
Web Cleaner Schematic

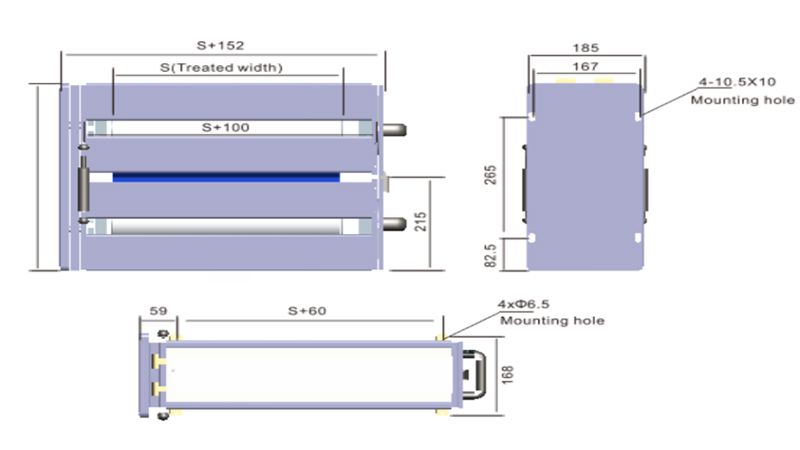

Technical Data

Model FR-300 FR-300+S
Working thickness 0.15mm - 6 mm 0.15 mm - 6 mm
Gas 4-8 kg/cm2 4-8 kg/cm2
Effective size 300 mm 300+S mm
Dimension (L×W×H) 452×420×185 mm (452+S)×420×185 mm

More than 20 years ago, HeFeng started its surface treatment development. Through years of experience, our range of surface treating equipment has been improved consistently and we have helped a number of manufacturers by delivering effective adhesion quality control. Backed by rich experience in corona and plasma treating, our team of surface treating experts can provide innovative surface treatment solutions to your adhesion problems relating to adhesive bonding, painting, printing, coating, cleaning, extrusion and lamination. Please explore our website to learn more about corona treatment and plasma treatment technologies for adhesion improvement and surface preparation.
