Corona Generator, CG2000

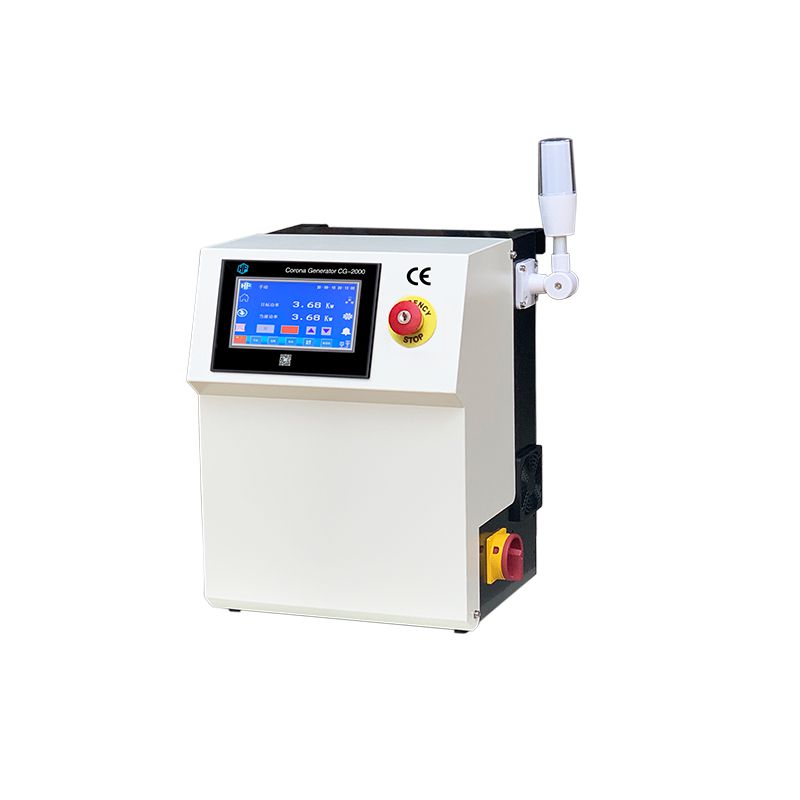

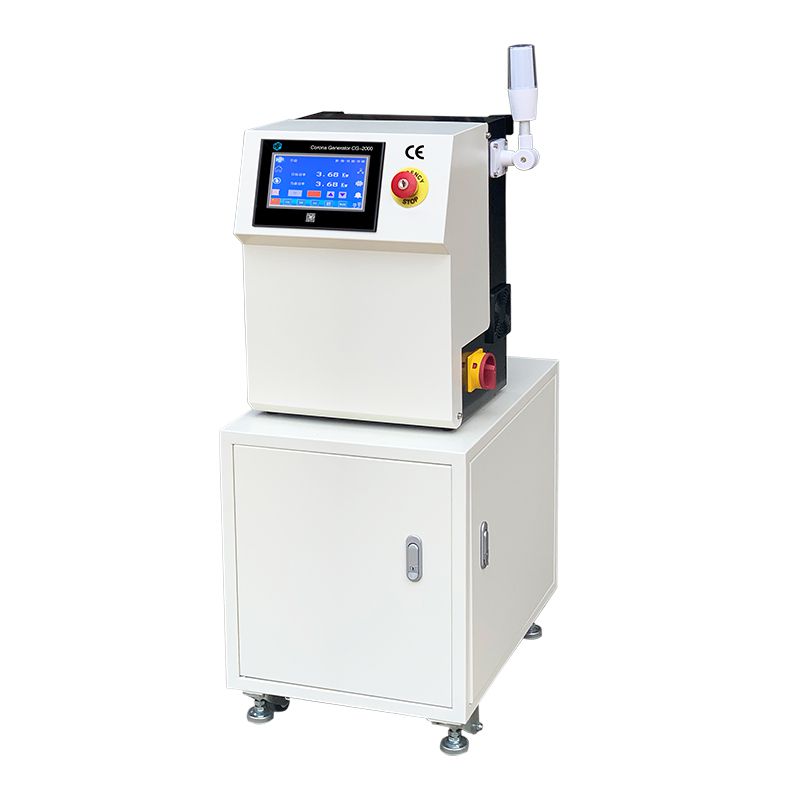

Integrated Style
(2-3 kW)

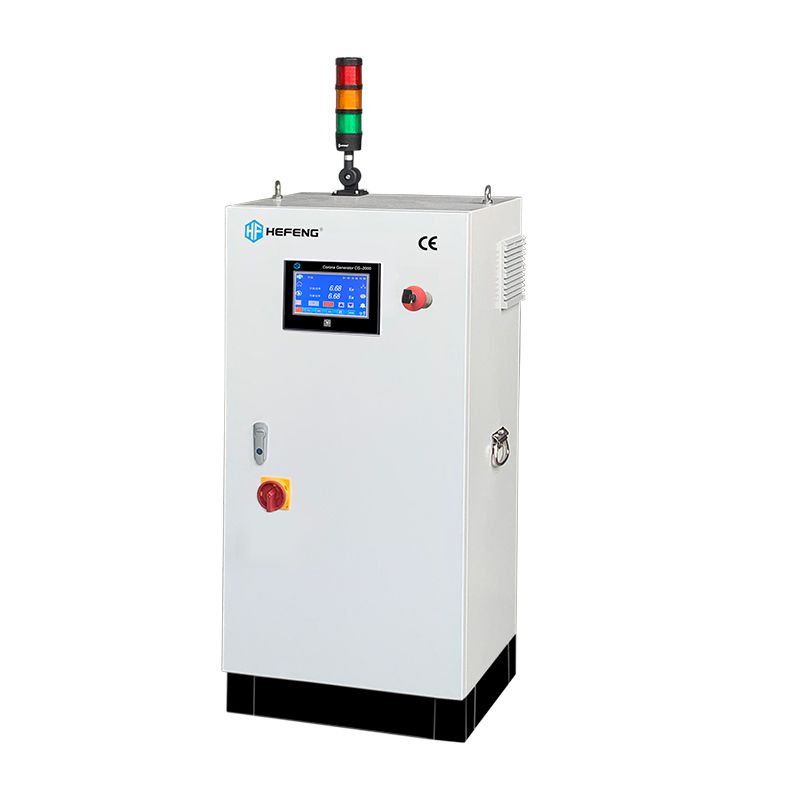

Floor-standing Style
(3-15 kW)

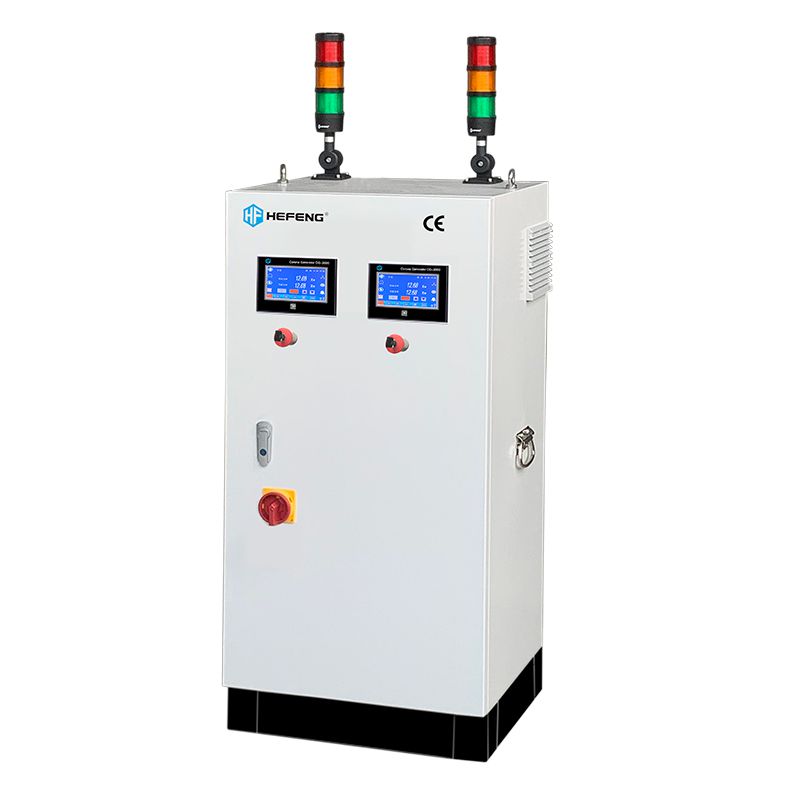

2-in-1 Cabinet Style
(4-30 kW)

Hanging Style
(2-3kW)

• Input power: AC 3×380V±10％, voltage is customizable
• Support RS-485 protocol;
• 4 optional control modes, control panel/output discharge control/remote control/automatic control;
• Touch screen and LCD display, clearly showing operating status including output power, DC voltage, current, frequency, line speed and processing mode;
• Utilizing Germany imported high power IGBT modules;
• The corona generator can be switched on and off by an external passive switch control;
• 0-10V adjustable analog voltage output;
• Watt density and speed control are two options under automatic operation mode;
• Parameters of various materials processing can be stored for user to easily call under automatic operation mode;
• Discharge hood open/close is controlled by DC24V solenoid valve;
• The value of power produced by corona generator can be controlled by varying the line speed of corona roller;
• The line speed of corona roller is detected by a proximity sensor;
• Designed with shutdown protection, air pressure protection, over-voltage/under-voltage protection, short circuit protection, IGBT overload protection, etc.;
• Wet start function can control the discharge power in a humid area, avoiding creepage discharge behavior;
• High-frequency oil-immersed transformer with Germany imported magnetic core, featuring low temperature and high work efficiency;
• Multiple language options;

• Modular design, easier maintenance;
• Integrated diagnostic system, more convenient service;
• Adjustable resonant frequency, higher efficiency;
• Electrode defect detection;
• Web server for on-site and remote service;
• Maximized output due to high efficiency;
• Dot matrix display and touch screen can be used simultaneously;
• Multiple language options;
• Remote control is available;
