Corona Generator, CD600

Videos

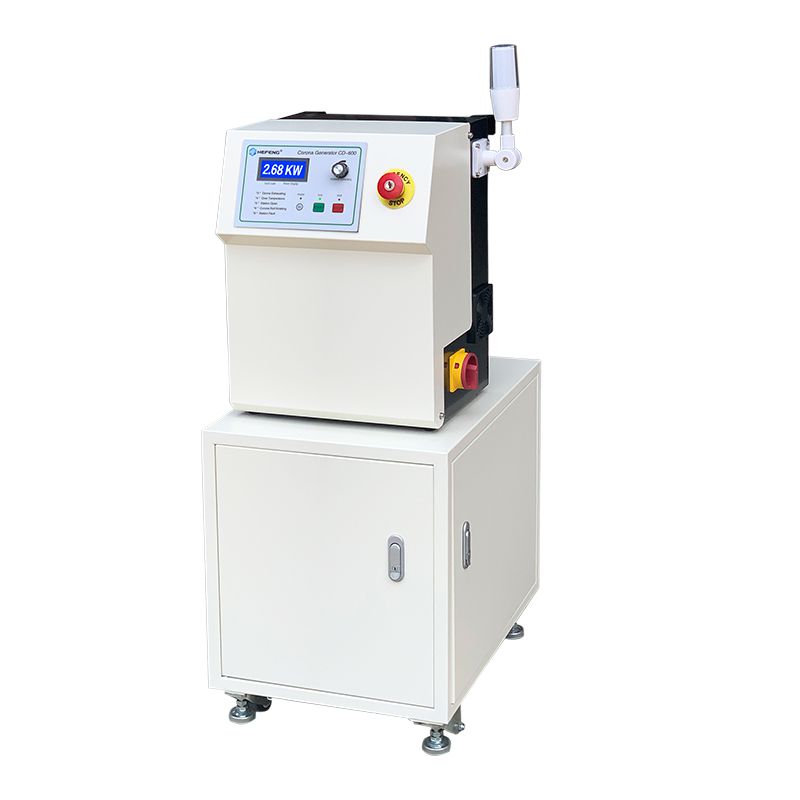

Integrated Style (2-3kW) Integrated Style
(2-3kW)

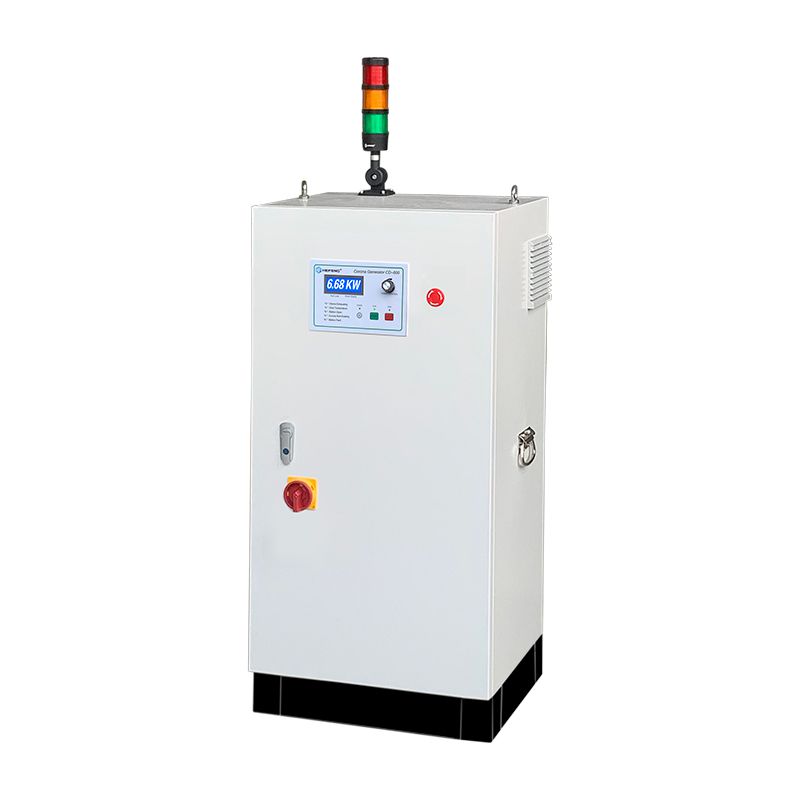

Floor-standing Style (3-15kW) Floor-standing Style
(3-15kW)

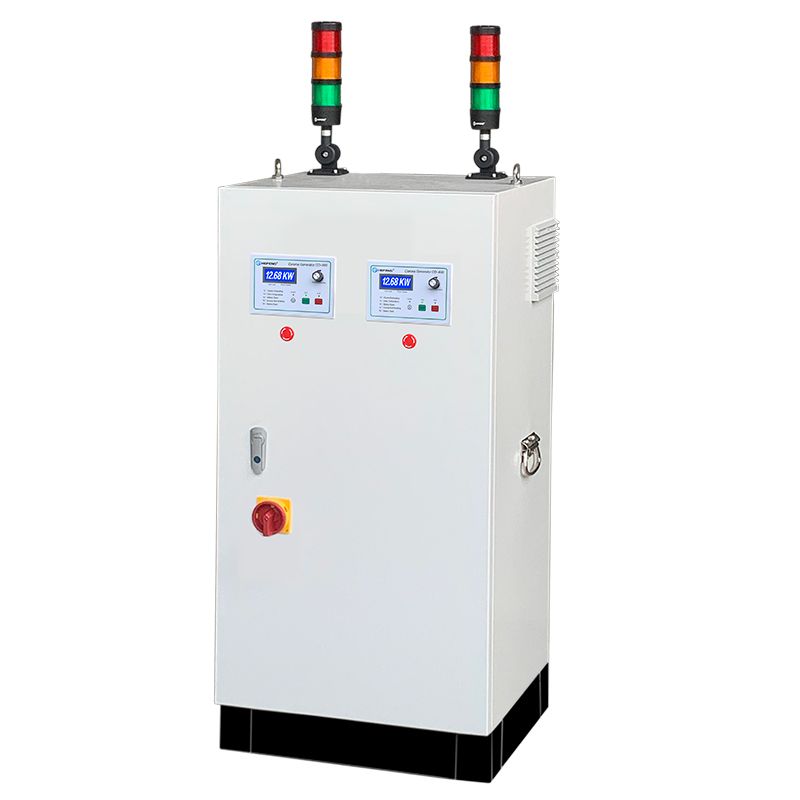

2-in-1 Cabinet Style (4-30kW) 2-in-1 Cabinet Style
(4-30kW)
Hanging Style (2-3kW) Hanging Style
(2-3kW)

Technical Characteristics

  • Input power: AC 3×380V±10%, voltage is customizable
  • Support RS-485 protocol;
  • 4 optional control modes, control panel/output discharge control/remote control/automatic control;
  • Touch screen and LCD display, clearly showing operating status including output power, DC voltage, current, frequency, line speed and processing mode;
  • Utilizing Germany imported high power IGBT modules;
  • The corona generator can be switched on and off by an external passive switch control;
  • 0-10V adjustable analog voltage output;
  • Watt density and speed control are two options under automatic operation mode;
  • Parameters of various materials processing can be stored for user to easily call under automatic operation mode;
  • Discharge hood open/close is controlled by DC24V solenoid valve;
  • The value of power produced by corona generator can be controlled by varying the line speed of corona roller;
  • The line speed of corona roller is detected by a proximity sensor;
  • Designed with shutdown protection, air pressure protection, over-voltage/under-voltage protection, short circuit protection, IGBT overload protection, etc.;
  • Wet start function can control the discharge power in a humid area, avoiding creepage discharge behavior;
  • High-frequency oil-immersed transformer with Germany imported magnetic core, featuring low temperature and high work efficiency;
  • Multiple language options;

Advantages

  • Power display
    Showing the operating power in real-time;
  • Power adjustment
    The output power of corona generator can be adjusted per actual needs;
  • Starting
    By the connection with equipment, the generator starts its work when film feeding;
  • Stopping
    By the connection with equipment, the generator stops when film stopping;
  • Fault monitoring
    Fault indicator will flash and alarm when any faults are detected, and the faults can be timely located;
  • Wet start
    The corona generator can maintain smooth running in a humid area;
  • High voltage transformer
    Independently oil-immersed high-voltage transformer provides excellent heat dissipation, reliable durability and safety;
Model CD-600 (2-3kW) CD-600 (3-15kW) CD-600 (4-30kW)
Input voltage 220 VAC±10% 50/60 Hz 3×380 VAC±10% 50/60 Hz 3×380 VAC±10% 50/60 Hz
Output voltage 10 - 12 kV 10 - 12 kV 10 - 12 kV
Output power 2-3 kW 3-15 kW 4-30 kW
Output frequency 20 -15 KHz 25 -15 KHz 25 -15 KHz
Dimensions Hanging style 380×380×520 mm Integrated style 450×600×1030 mm Floor-standing style 530×380×1085 mm 2-in-1 cabinet style 650×380×1150 mm
