Corona Treatment Station (Conductive/Non-conductive Webs)
Applications
The corona treatment station can treat both conductive and non-conductive webs, such as PP, CPP, BOPP, PE, PET, HDPE, LDPE, PS, PI, PVC, ABS, non-woven, synthetic paper, aluminum coated film, holographic film, aluminum foil, copper foil, self-adhesive stickers, etc.
- FC-21
- FC-21
- FC-22
- FC-31R
- FC-31
- FC-32
- FC-52
- FR-20-1
- FR-20-2
- FR-20-4
-

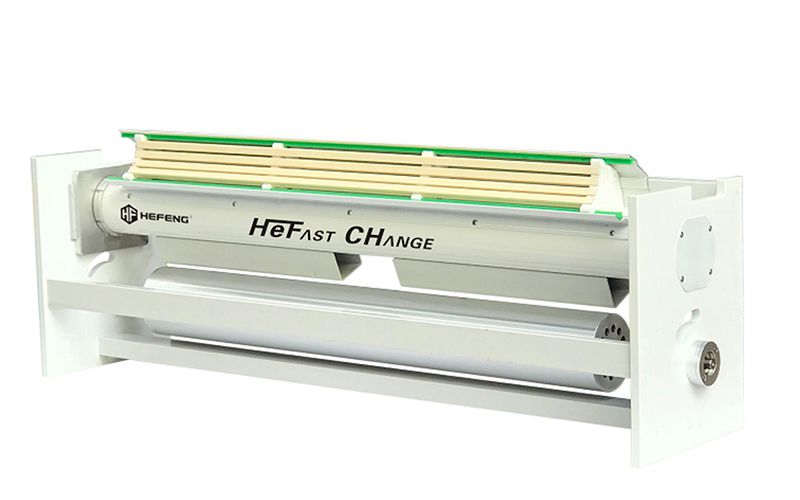

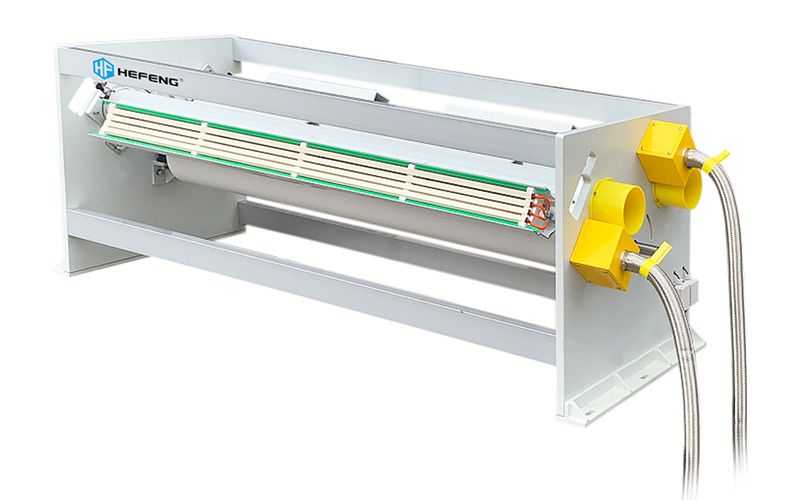

FC-21 series
Technical Data
- Output power: 2-30 kW (configurable with CG2000/CD600 corona generators)
- Input voltage: 220VAC/380VAC
- Line speed: 1-300 m/min (customizable)
- Web width: 830-3950 mm (customizable)
- Treatment: single-sided treatment
- Electrode: ceramic electrode
- Corona roller: aluminum roller or ceramic roller
- Installation: 360-degree installation
- Applications: high-speed coating, lamination, extrusion, etc.
-
FC-21 series single-sided treatment (twice)
Technical Data
- Output power: 2-30 kW (configurable with CG2000/CD600 corona generators)
- Input voltage: 220VAC/380VAC
- Line speed: 1-300 m/min (customizable)
- Web width: 830-3950 mm (customizable)
- Treatment: single-sided treatment (twice)
- Electrode: ceramic electrode
- Corona roller: aluminum roller or ceramic roller
- Installation: 360-degree installation
- Applications: high-speed coating, lamination, extrusion, etc.
-

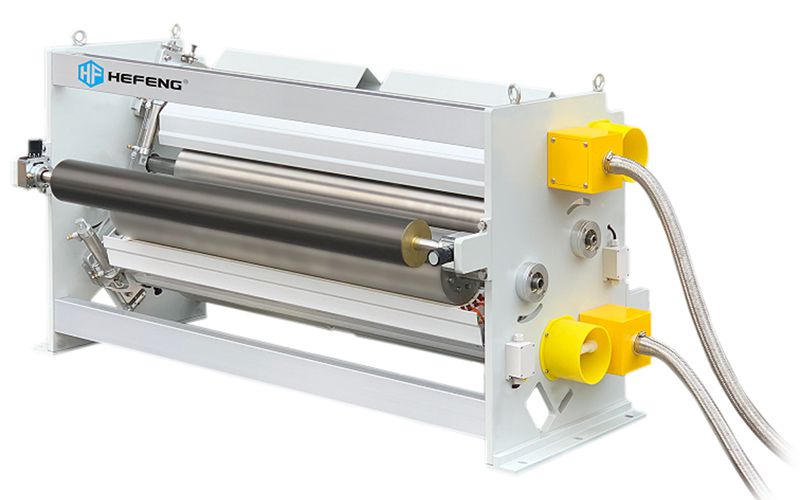

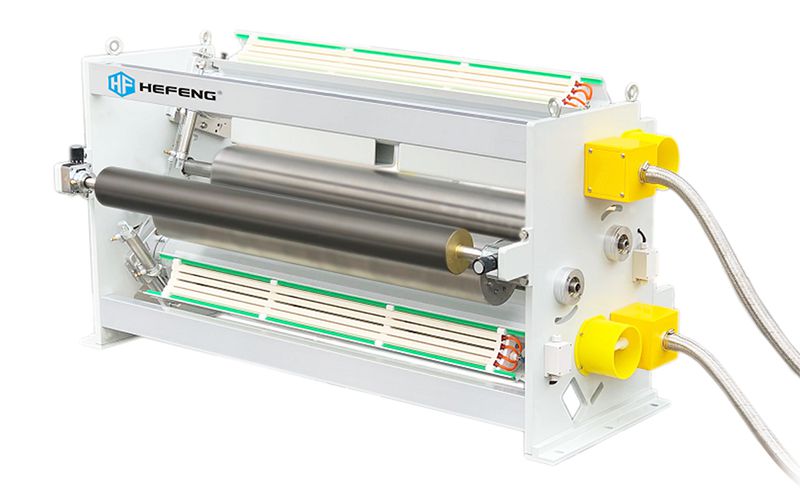

FC-22 series
Technical Data
- Output power: 2-30 kW (configurable with CG2000/CD600 corona generators)
- Input voltage: 220VAC/380VAC
- Line speed: 1-300 m/min (customizable)
- Web width: 830-3950 mm (customizable)
- Treatment: single-sided treatment
- Electrode: ceramic electrode
- Corona roller: aluminum roller or ceramic roller
- Installation: 360-degree installation
- Applications: high-speed coating, lamination, extrusion, etc.
-

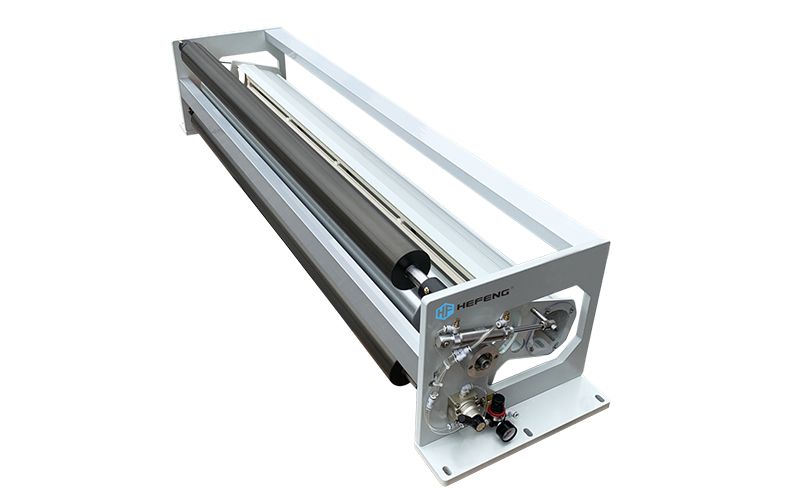

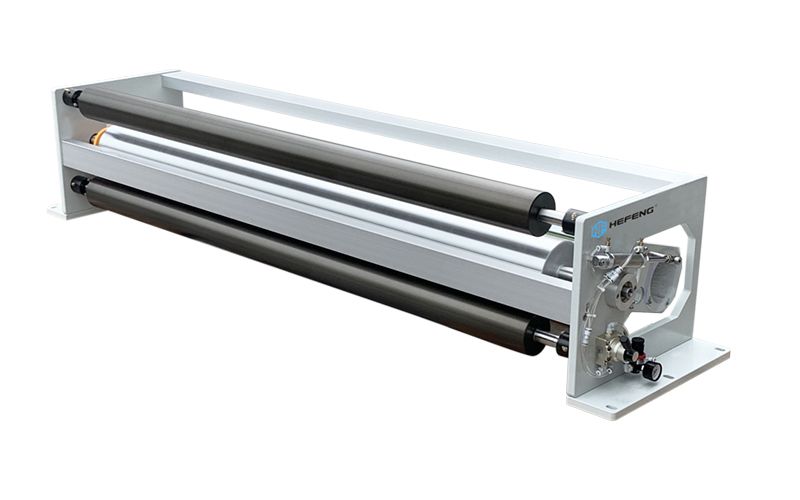

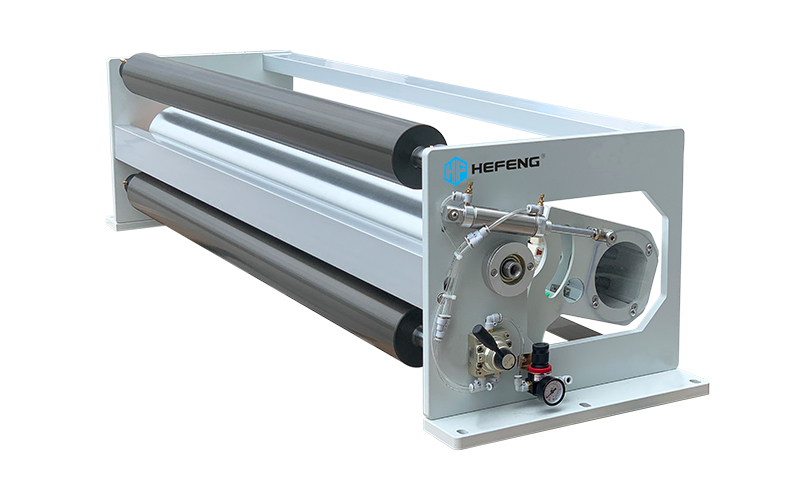

FC-31R series
Technical Data
- Output power: 2-30 kW (configurable with CG2000/CD600 corona generators)
- Input voltage: 220VAC/380VAC
- Line speed: 5-400 m/min (customizable)
- Web width: 300-3000 mm (customizable)
- Treatment: single-sided treatment
- Electrode: ceramic electrode
- Corona roller: aluminum roller or ceramic roller
- Applications: high-speed coating, slitting, lamination, extrusion, sheeting, etc.
-

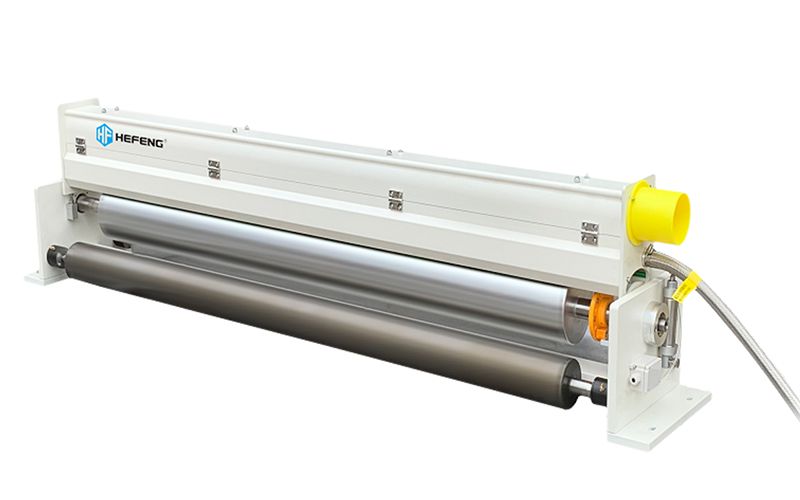

FC-31 series
Technical Data
- Output power: 2-30 kW (configurable with CG2000/CD600 corona generators)
- Input voltage: 220VAC/380VAC
- Line speed: 5-400 m/min (customizable)
- Web width: 300-3000 mm (customizable)
- Treatment: single-sided treatment
- Electrode: ceramic electrode
- Corona roller: aluminum roller or ceramic roller
- Applications: high-speed coating, slitting, lamination, extrusion, sheeting, etc.
-

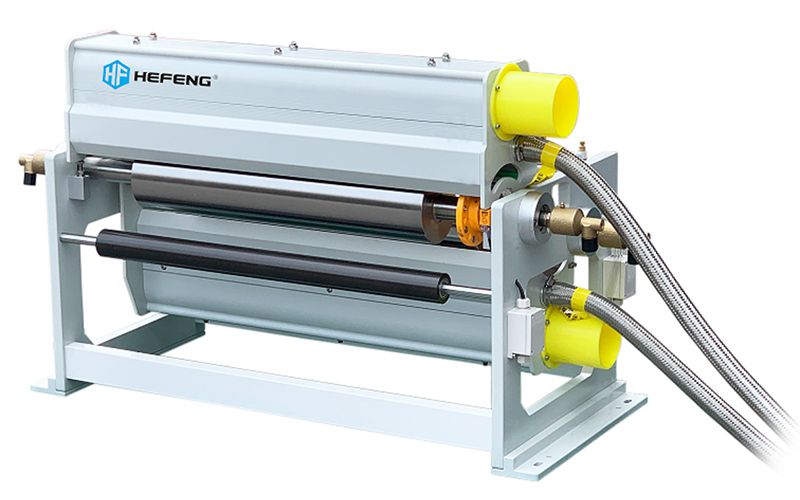

FC-32 series
Technical Data
- Output power: 2-30 kW (configurable with CG2000/CD600 corona generators)
- Input voltage: 220VAC/380VAC
- Line speed: 5-400 m/min (customizable)
- Web width: 300-3000 mm (customizable)
- Treatment: double-sided treatment
- Electrode: ceramic electrode
- Corona roller: aluminum roller or ceramic roller
- Applications: high-speed coating, slitting, lamination, extrusion, sheeting, etc.
-

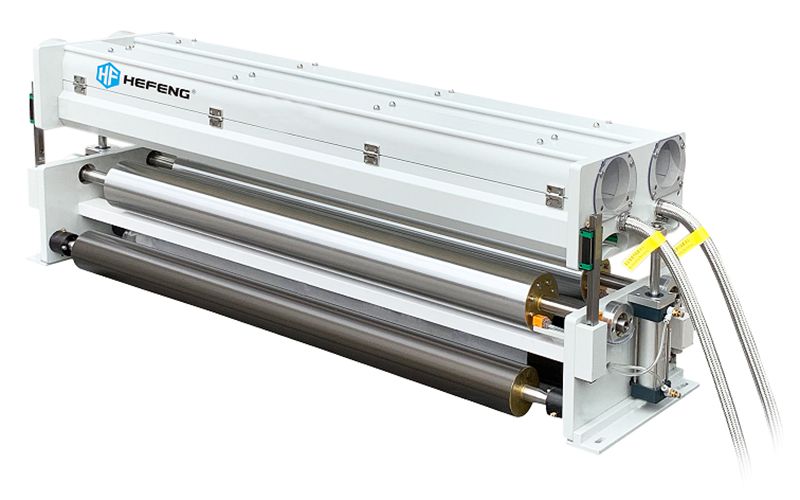

FC-52 series
Technical Data
- Output power: 2-30 kW (configurable with CG2000/CD600 corona generators)
- Input voltage: 220VAC/380VAC
- Line speed: 5-400 m/min (customizable)
- Web width: 300-3000 mm (customizable)
- Treatment: single-sided treatment (twice)
- Electrode: ceramic electrode
- Corona roller: aluminum roller or ceramic roller
- Applications: high-speed coating, slitting, lamination, extrusion, sheeting, etc.
-

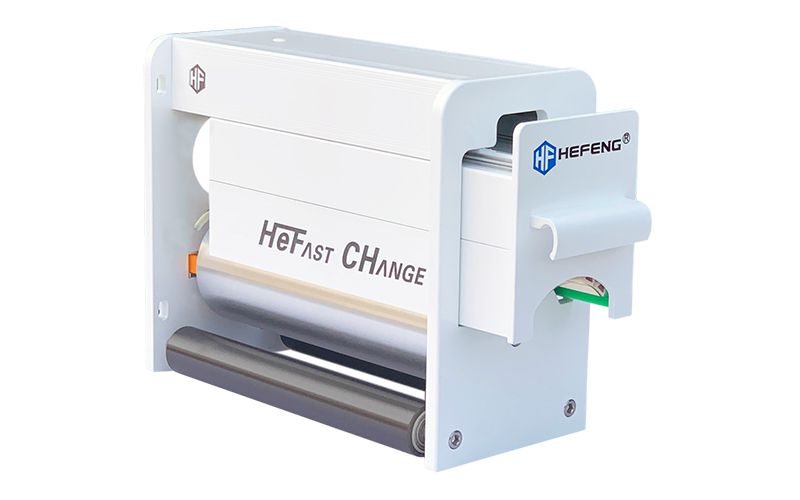

FR-20-1 series
Technical Data
- Output power: 2-30 kW (configurable with CG2000/CD600 corona generators)
- Input voltage: 220VAC/380VAC
- Line speed: 600 m/min (customizable)
- Web width: 210-1350 mm (customizable)
- Treatment: single-sided treatment
- Electrode: ceramic electrode
- Corona roller: aluminum roller or ceramic roller
- Installation: 360-degree installation
- Applications: label and narrow web printing (flexo printing, digital printing, screen printing, PS plate
-

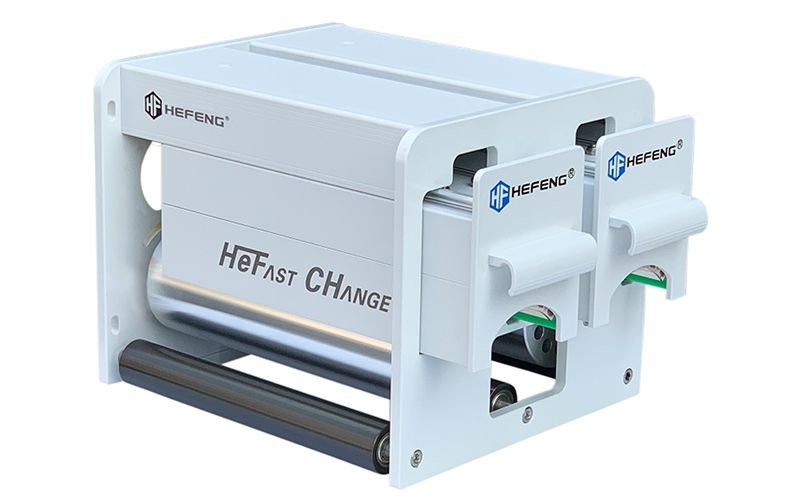

FR-20-2 series
Technical Data
- Output power: 2-30 kW (configurable with CG2000/CD600 corona generators)
- Input voltage: 220VAC/380VAC
- Line speed: 600 m/min (customizable)
- Web width: 210-1350 mm (customizable)
- Treatment: single-sided treatment (twice)
- Electrode: ceramic electrode
- Corona roller: aluminum roller or ceramic roller
- Installation: 360-degree installation
- Applications: label and narrow web printing (flexo printing, digital printing, screen printing, PS plate printing)
-

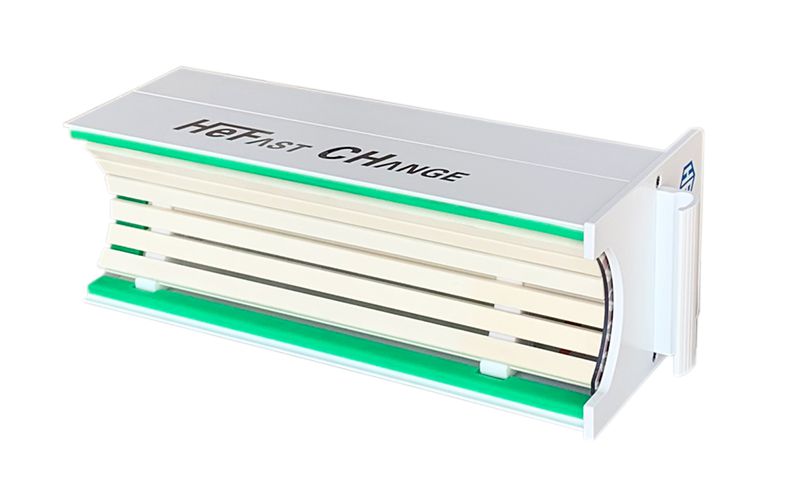

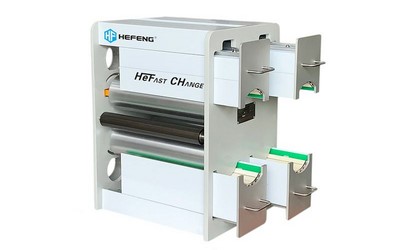

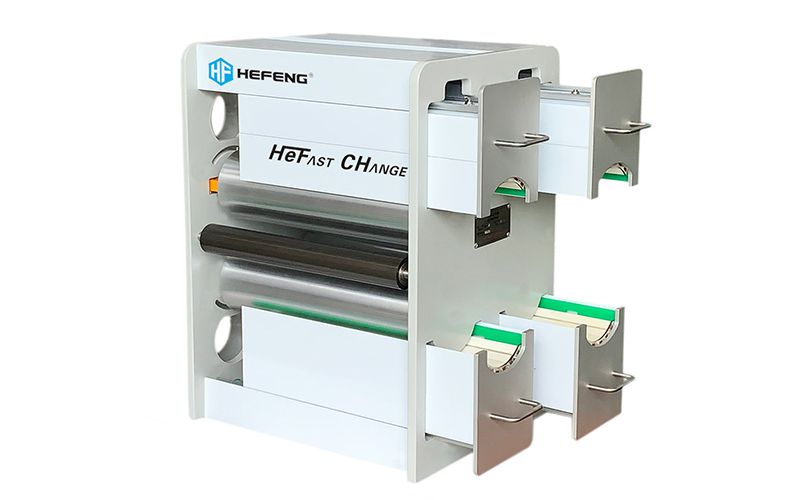

FR-20-4 series
Technical Data
- Output power: 2-30 kW (configurable with CG2000/CD600 corona generators)
- Input voltage: 220VAC/380VAC
- Line speed: 600 m/min (customizable)
- Web width: 210-1350 mm (customizable)
- Treatment: double-sided treatment
- Electrode: ceramic electrode
- Corona roller: aluminum roller or ceramic roller
- Installation: 360-degree installation
- Applications: label and narrow web printing (flexo printing, digital printing, screen printing, PS plate printing)
