Sheet Corona Treater

Applications

Sheet corona treater can treat a variety of non-conductive sheets, such as PP, BOPP, LDPE, HDPE, PET, PS, PC, PA, PVC, ABS, synthetic paper, etc., to increase surface tension and provide better adhesion.

  • FR-31 series

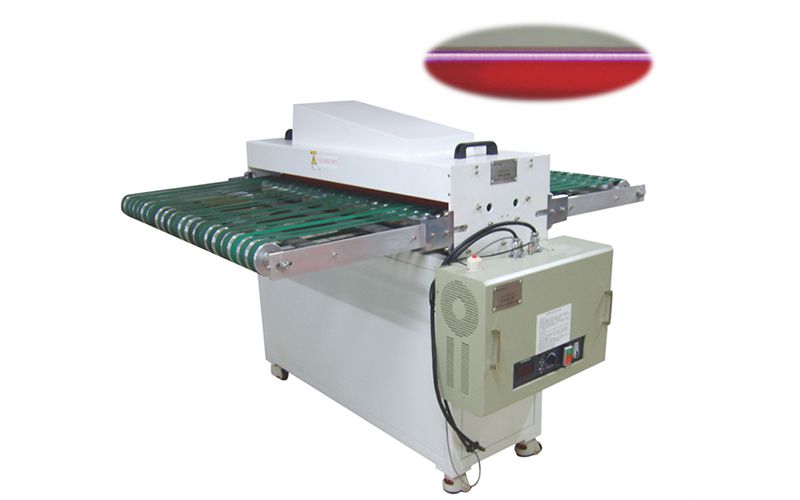

    FR-31 series

    Technical Data

    • Output power: 3-8 kW (configurable with CG2000/CD600 corona generators)
    • Input voltage: 220VAC/380VAC
    • Line speed: 2-15 m/min
    • Treating width: 600/800/1000 mm (customizable)
    • Treating thickness: 0.15-1.5 mm (max. thickness of hollow sheet 4-10mm)
    • Treatment: single-sided treatment
    • Feature: conveyor belt, preventing scratching of sheet surface
  • FR-33 series

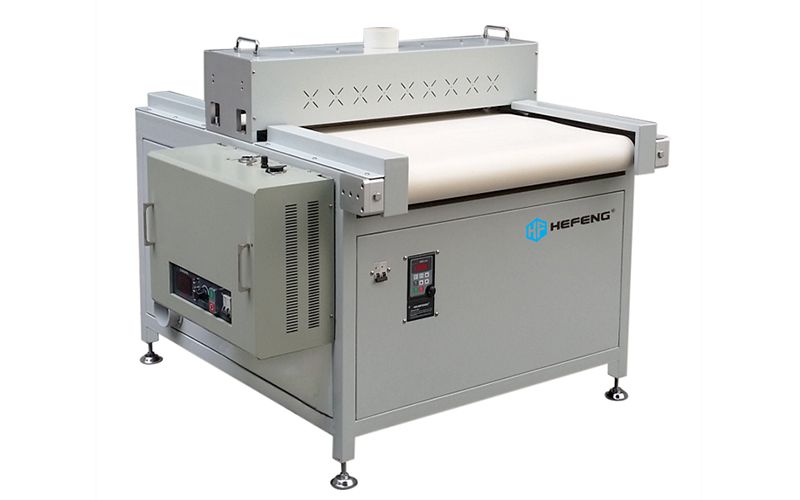

    FR-33 series

    Technical Data

    • Output power: 3-6 kW (configurable with CG2000/CD600 corona generators)
    • Input voltage: 220VAC/380VAC
    • Line speed: 2-15 m/min
    • Treating width: 600/800/1000 mm (customizable)
    • Treating thickness: 0.15-1.5 mm (max. thickness of hollow sheet 4-10mm)
    • Treatment: single-sided treatment
    • Feature: heat resistant conveyor belt, suitable for conveying thin sheets of 0.1 mm in thickness
  • FR-54 series

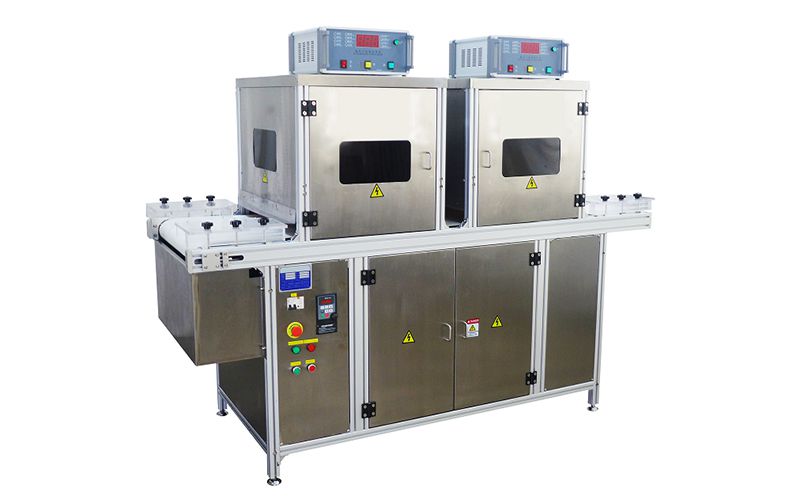

    FR-54 series
    FR-54 series FR-54 series

    Technical Data

    • Output power: 1.5 kW (configurable with CG2000/CD600 corona generators)
    • Input voltage: 220VAC ±10% 50/60Hz
    • Line speed: 2-9 m/min
    • Treating width: 200 mm
    • Treating height: 0.1-30 mm

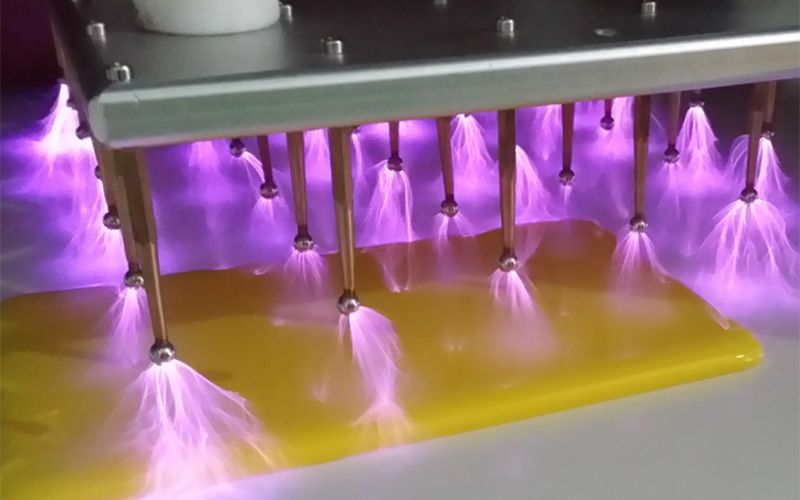

    • Electrode: dual electrode heads, specially designed round electrodes, providing better surface treatment, suitable for sheets with higher thickness
